ZV SERIES-DE 2-1157

Code: 2-1157

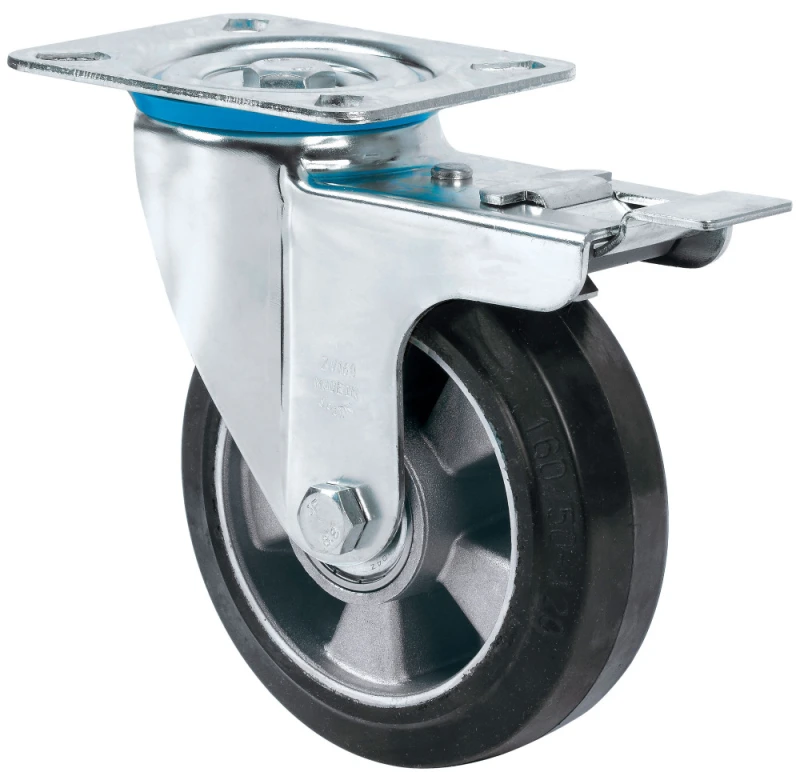

Castors with aluminium centre and black elastic rubber tyre with a hardness of 70º Shore A. Especially indicated to support high-loads up to 450 Kg.

It is used in: medium-heavy duty industrial sectors, logistics tranport tools, repair shops, outdoor areas, tool trolleys, internal logistics, tubular carts, mobile platforms, elevating platforms, logistics for military missions material, tool transport, restaurants, sweeping machines, polishing machines, mobile cranes, light machinery, elevating driven carts, elevating tables, roll containers and containers.

DE: ideal in the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

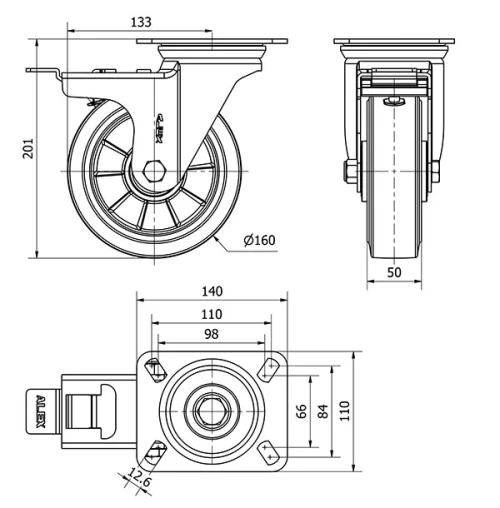

Technical Data 2-1157

EAN:

8422202211572

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

133

Overall height (mm):

201

Load:

350

Unit Weight of the wheel (kg):

2,78

Volume (cm³):

5457

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-1192

2-1473

2-3327
