BH SERIES-PGI 2-2459

See comparative

Code: 2-2459

Injected grey rubber castors. Especially indicated to support loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, clinical furniture and drips.

PGI: does not scratch or leave marks on floor. Noiseless.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

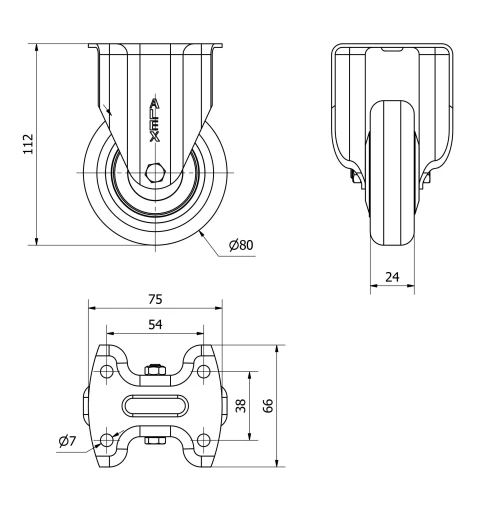

Technical Data 2-2459

EAN:

8422202224596

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

75x66

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Overall height (mm):

112

Load:

Unit Weight of the wheel (kg):

0,3

Volume (cm³):

591
