Which castors do you need?
BH SERIES-PGI 1-0176
EAN 8422202101767
Injected grey rubber castors. Especially indicated to support loads up to 70 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, clinical furniture and drips.
PGI: does not scratch or leave marks on floor. Noiseless.

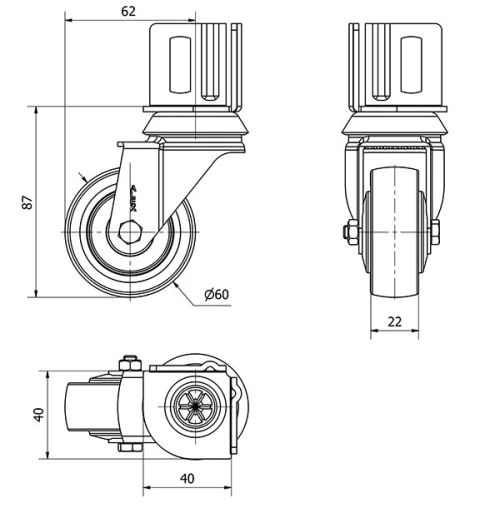

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | For corners |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 22 |
Plate dimensions (mm) | 40x40 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 62 |
Overall height (mm) | 87 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.315 |
Volume (cm3) | 543 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
