BH SERIES-PGIB 2-2815
EAN 8422202228150

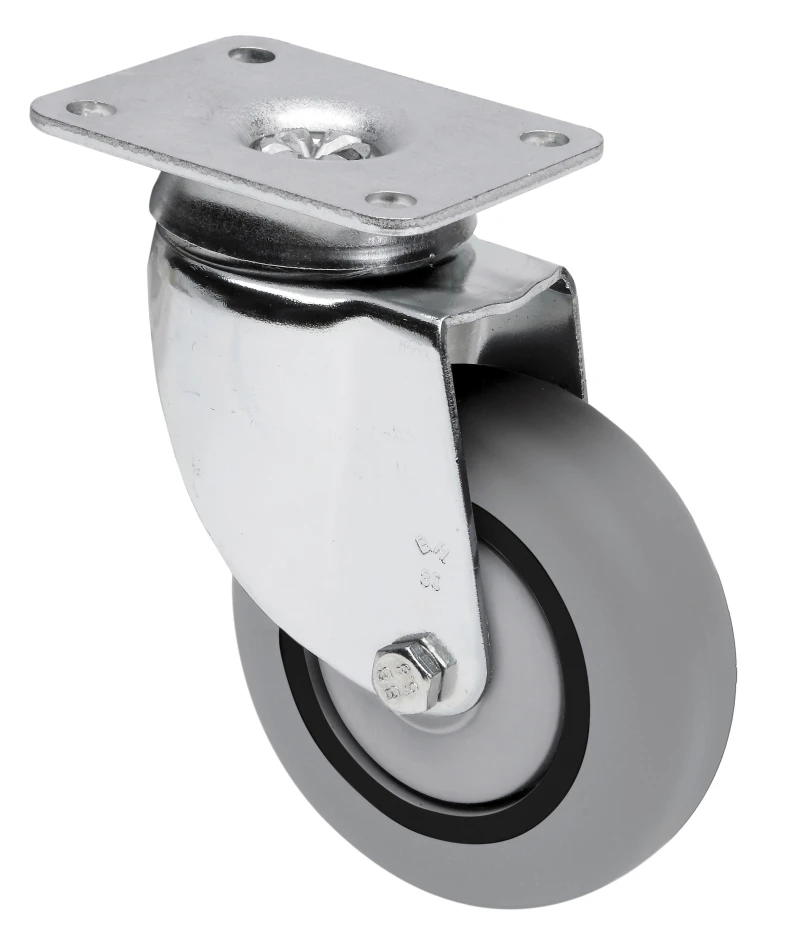

Grey injected rubber castors. Especially indicated to support high-loads up to 80 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment and drips.
PGIB: does not scratch or leave marks on floor. Noiseless. Easy to move.

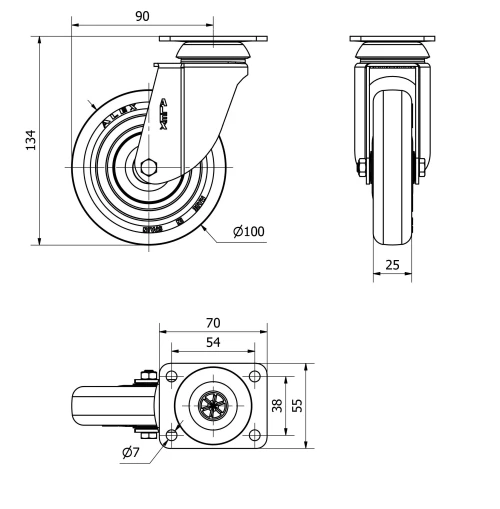

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 25 |
Plate dimensions (mm) | 70x55 |
Distance between holes (mm) | 54x38 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 90 |
Overall height (mm) | 134 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.5 |
Volume (cm3) | 921 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2 mm. Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.
-
Rolling Resistence Reasonable
-
Noise during the march Very Good
-
Floor Protection Very Good
