BHA SERIES-PGAIB 2-2720
EAN 8422202227207
Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.
It is used in: food trolleys, kitchens, supermarkets, housekeeping carts and beds.
PGAIB: noiseless and absorbs vibrations. Does not leave marks on floor. Easy to move.

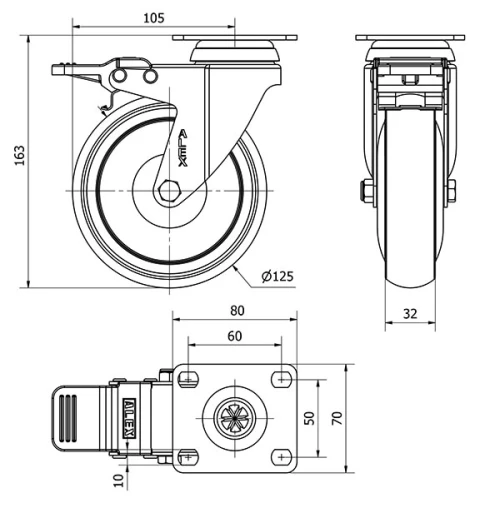

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 80x70 |
Distance between holes (mm) | 60x50 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 105 |
Overall height (mm) | 163 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.942 |
Volume (cm3) | 1703 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.
Wheel
Grey thermoplastic rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
