CAD

Which castors do you need?

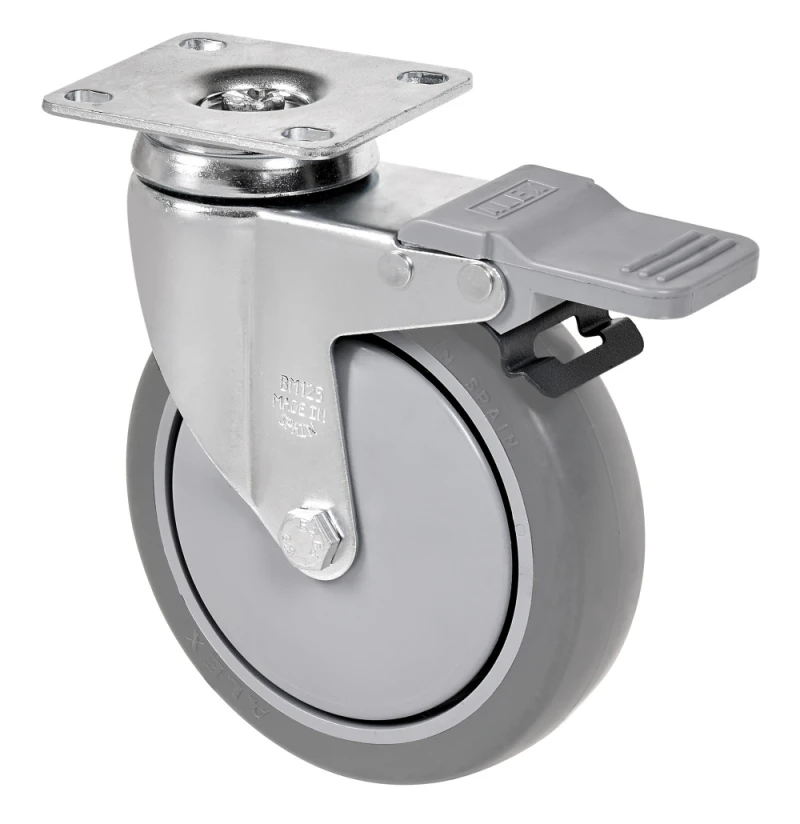

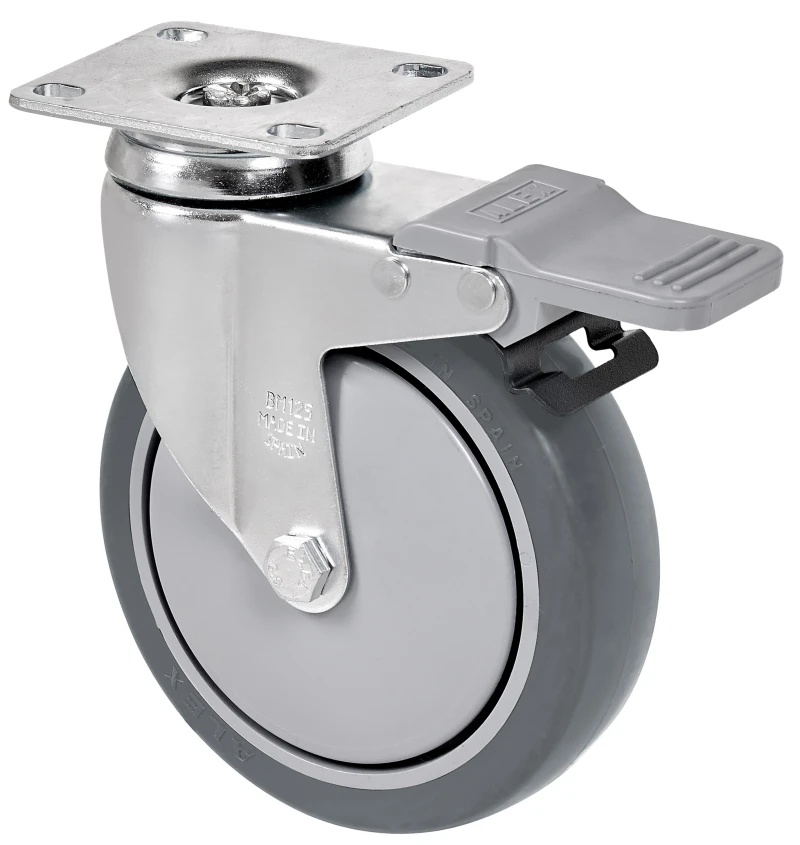

BHA SERIES-PGAIB 2-4602

See comparative

Code: 2-4602

Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.

It is used in: food trolleys, kitchens, supermarkets, housekeeping carts and beds.

PGAIB: noiseless and absorbs vibrations. Does not leave marks on floor. Easy to move.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Grey thermoplastic rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

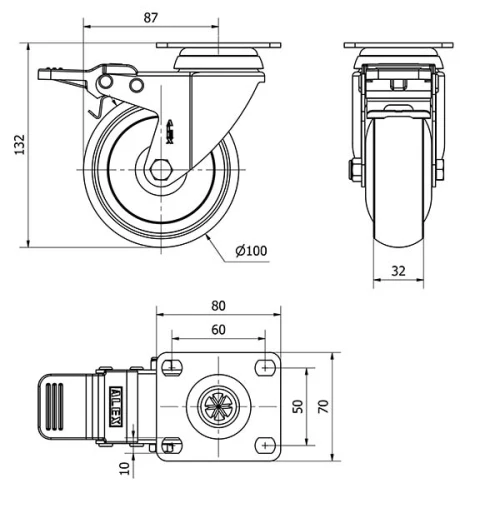

Technical Data 2-4602

EAN:

8422202246024

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

60

Hardness of tread:

90º SHORE A

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

32

Plate dimensions (mm):

80x70

Distance between holes (mm):

60x50

Plate hole diameter (mm):

8

Offset (mm):

87

Overall height (mm):

132

Load:

90

Technical Data 2-4602
