BH SERIES-PGI 2-4480

Code: 2-4480

Injected grey rubber castors. Especially indicated to support loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, clinical furniture and drips.

PGI: does not scratch or leave marks on floor. Noiseless.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

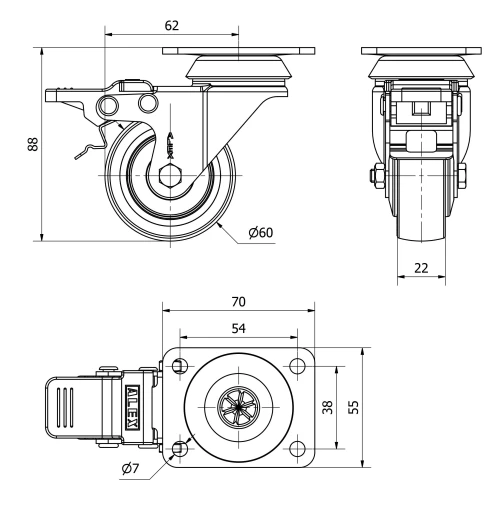

Technical Data 2-4480

EAN:

8422202244808

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,38
