Which castors do you need?
BHA SERIES-PGC 2-4735
EAN 8422202247359
Electrically conductive grey polyurethane castors. Especially designed to support loads up to 100 kg.
Used in food trolleys, operating rooms, hospitals, food factories, supermarkets.
PGC: Non-marking. Easy rolling. Noiseless. Electrically conductive.

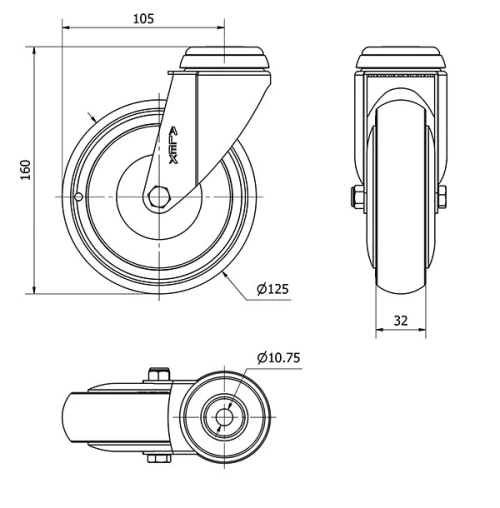

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 105 |
Overall height (mm) | 160 |
Load | 100 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.
