BHA SERIES-PGC 2-4736

See comparative

Code: 2-4736

Electrically conductive grey polyurethane castors. Especially designed to support loads up to 100 kg.

Used in food trolleys, operating rooms, hospitals, food factories, supermarkets.

PGC: Non-marking. Easy rolling. Noiseless. Electrically conductive.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

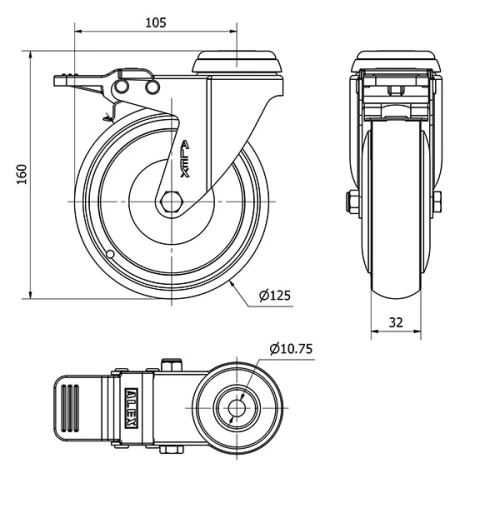

Technical Data 2-4736

EAN:

8422202247366

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

160

Load:

100

Small Threadguard:

CONDUCTIVO
