SERIE HLB-NF

Categories

Extra heavy duty castors made of  reinforced cast nylon very resistant to aggressive substances,chemicals and wear and abrasion. Especially designed to support loads up to 2,750 kg.

Highly recommended for car body factories, internal logistics, transport equipment, heavy machinery, portable cranes, sport halls, sweepers, polishers.

NF: Heavy duty load capacity wheel. High impact and shock-resistance. Extra-heavy. Little friction with the ground.

To prevent overheating, short working periods are recommended.

See comparative

HLB SERIES-NF

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4418 100 1250 55 Bearing: Ball 150x110 105x80 10 160 90
2-4421 125 1350 55 Bearing: Ball 150x110 105x80 10 183 106
2-4424 150 2750 80 Bearing: Ball 180x170 150x135 16 200 121
2-0111 200 3000 80 Bearing: Ball 180x170 150x135 17 249 155
Gamma Amplification

HLB SERIES-NF

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4419 100 1250 55 Bearing: Ball 150x110 105x80 10 160 --
2-4422 125 1350 55 Bearing: Ball 150x110 105x80 10 183 --
2-4425 150 2750 80 Bearing: Ball 180x170 150x135 16 200 --
2-0112 200 3000 80 Bearing: Ball 180X170 150x135 17 249 --
Gamma Amplification

HLB SERIES-NF

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4420 100 1250 55 Bearing: Ball 150x110 105x80 10 160 90
2-4423 125 1350 55 Bearing: Ball 150x110 105x80 10 183 106
2-4426 150 2750 80 Bearing: Ball 180x170 150x135 16 200 121
2-0113 200 3000 80 Bearing: Ball 180x170 150x135 17 249 155
Gamma Amplification

HLB SERIES-NF

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4487 100 1250 55 Bearing: Ball 150x110 105x80 10 160 90
2-4488 125 1350 55 Bearing: Ball 150x110 105x80 10 183 106
2-4489 150 2750 80 Bearing: Ball 180x170 150x135 16 200 121
2-0114 200 3000 80 Bearing: Ball 180x170 150x135 17 249 155
Gamma Amplification

Other castors SERIE HLB

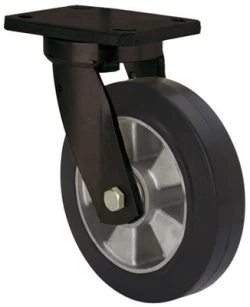

SERIE HLB-DE
SERIE HLB-DE
Ampliamos Gamma
Diametro 125-250 mm
Carga 250-500 kg

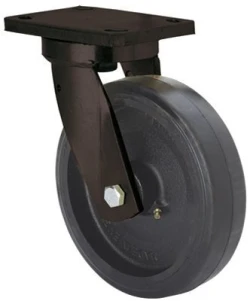

SERIE HLB-HG
SERIE HLB-HG
Diametro 100-300 mm
Carga 200-850 kg
SERIE HLB-PO
SERIE HLB-PO
Diametro 125-200 mm
Carga 300-600 kg
SERIE HLB-HU
SERIE HLB-HU
Ampliamos Gamma
Diametro 100-300 mm
Carga 350-1.900 kg

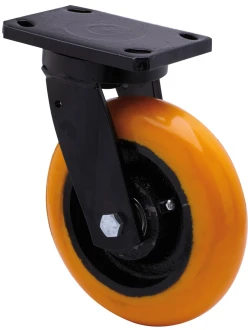

SERIE HLB-HUAB
SERIE HLB-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE HLB-FT
SERIE HLB-FT
Diametro 100-250 mm
Carga 400-1.300 kg
SERIE HLB-TA
SERIE HLB-TA
Diametro 100-250 mm
Carga 450-1.350 kg
