SERIE HLB-PO

Categories

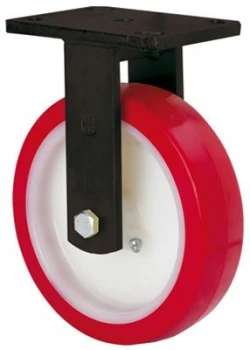

Castors with white nylon centre and red polyurethane tyre with a hardness of 90-95º Shore A. Mechanical traction. Especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, boilers, sweeping machines, metallurgical factories, chemical factories and public services.

Mainly used in the aeronautic sector, railway and automobile factories.

PO: elastic and noiseless functioning. High floor protection. Noiseless. Long useful life.

See comparative

HLB SERIES-PO

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0483 125 300 42 Bearing: Plain 150x110 105x80 10 183 106
2-0484 125 300 42 Bearing: Ball 150x110 105x80 10 183 106
2-0485 150 450 42 Bearing: Plain 150x110 105x80 10 200 121
2-0486 150 450 42 Bearing: Ball 150x110 105x80 10 200 121
2-0487 200 600 50 Bearing: Plain 150x110 105x80 10 249 155
2-0488 200 600 50 Bearing: Ball 150x110 105x80 10 249 155

HLB SERIES-PO

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0493 125 300 42 Bearing: Plain 150x110 105x80 10 183 --
2-0494 125 300 42 Bearing: Ball 150x110 105x80 10 183 --
2-0495 150 450 42 Bearing: Plain 150x110 105x80 10 200 --
2-0496 150 450 42 Bearing: Ball 150x110 105x80 10 200 --
2-0497 200 600 50 Bearing: Plain 150x110 105x80 10 249 --
2-0498 200 600 50 Bearing: Ball 150x110 105x80 10 249 --

HLB SERIES-PO

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1528 150 450 42 Bearing: Plain 150x110 105x80 10 200 121
2-1529 150 450 42 Bearing: Ball 150x110 105x80 10 200 121
2-1530 200 600 50 Bearing: Plain 150x110 105x80 10 249 155
2-1531 200 600 50 Bearing: Ball 150x110 105x80 10 249 155

HLB SERIES-PO

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3361 125 300 42 Bearing: Plain 150x110 105x80 10 183 106
2-3362 125 300 42 Bearing: Ball 150x110 105x80 10 183 106
2-3363 150 450 42 Bearing: Plain 150x110 105x80 10 200 121
2-3364 150 450 42 Bearing: Ball 150x110 105x80 10 200 121
2-3365 200 600 50 Bearing: Plain 150x110 105x80 10 249 155
2-3366 200 600 50 Bearing: Ball 150x110 105x80 10 249 155

Other castors SERIE HLB

SERIE HLB-DE
SERIE HLB-DE
Ampliamos Gamma
Diametro 125-250 mm
Carga 250-500 kg
SERIE HLB-HG
SERIE HLB-HG
Diametro 100-300 mm
Carga 200-850 kg
SERIE HLB-HU
SERIE HLB-HU
Diametro 100-300 mm
Carga 350-1.900 kg
SERIE HLB-HUAB
SERIE HLB-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE HLB-NF
SERIE HLB-NF
Ampliamos Gamma
Diametro 100-200 mm
Carga 1.250-3.000 kg
SERIE HLB-FT
SERIE HLB-FT
Diametro 100-250 mm
Carga 400-1.300 kg
SERIE HLB-TA
SERIE HLB-TA
Diametro 100-250 mm
Carga 450-1.350 kg
