SERIE HLB-FT

Categories

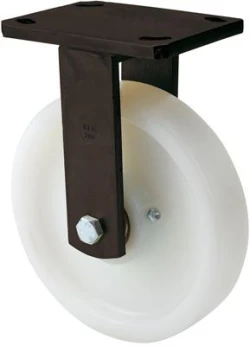

Reinforced nylon castors, especially indicated to support high-loads up to 1.250 Kg.

It is used in: logistics transport tools, outdoor area, internal logistics, mobile platforms, elevating platforms, transport cars, logistics for military missions material, heavy machinery in the construction sector, mobile cranes and sport centres.

Mainly used in the aeronautic sector, railway and automobilie factories. Clean rooms.

FT: especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. Canning factories.

See comparative

HLB SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0463 100 400 36 Bearing: Plain 150x110 105x80 10 160 90
2-0464 100 400 36 Bearing: Ball 150x110 105x80 10 160 90
2-0465 125 600 42 Bearing: Plain 150x110 105x80 10 183 106
2-0466 125 600 42 Bearing: Ball 150x110 105x80 10 183 106
2-0467 150 900 45 Bearing: Plain 150x110 105x80 10 200 121
2-0468 150 900 45 Bearing: Ball 150x110 105x80 10 200 121
2-0469 200 1000 50 Bearing: Plain 150x110 105x80 10 249 155
2-0470 200 1000 50 Bearing: Ball 150x110 105x80 10 249 155
2-2297 250 1100 57 Bearing: Plain 150x110 105x80 10 315 197
2-2298 250 1100 57 Bearing: Ball 150x110 105x80 10 315 197
2-0471 250 1200 57 Bearing: Plain 180x170 150x135 16 315 197
4-1056 250 1300 57 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0472 100 400 36 Bearing: Plain 150x110 105x80 10 160 --
2-0473 100 400 36 Bearing: Ball 150x110 105x80 10 160 --
2-0474 125 600 42 Bearing: Plain 150x110 105x80 10 183 --
2-0475 125 600 42 Bearing: Ball 150x110 105x80 10 183 --
2-0476 150 900 45 Bearing: Plain 150x110 105x80 10 200 --
2-0477 150 900 45 Bearing: Ball 150x110 105x80 10 200 --
2-0478 200 1000 50 Bearing: Plain 150x110 105x80 10 249 --
2-0479 200 1000 50 Bearing: Ball 150x110 105x80 10 249 --
2-2299 250 1100 57 Bearing: Plain 150x110 105x80 10 315 --
2-2300 250 1100 57 Bearing: Ball 150x110 105x80 10 315 --
2-0480 250 1200 57 Bearing: Plain 180x170 150x135 16 315 --
4-1065 250 1300 57 Bearing: Ball 180x170 150x135 16 315 --

HLB SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1513 150 900 45 Bearing: Plain 150x110 105x80 10 200 121
2-1514 150 900 45 Bearing: Ball 150x110 105x80 10 200 121
2-1512 200 1000 50 Bearing: Plain 150x110 105x80 10 249 155
2-1519 200 1000 50 Bearing: Ball 150x110 105x80 10 249 155
2-2301 250 1100 57 Bearing: Plain 150x110 105x80 10 315 197
2-2302 250 1100 57 Bearing: Ball 150x110 105x80 10 315 197
2-1520 250 1200 57 Bearing: Plain 180x170 150x135 16 315 197
2-1521 250 1300 57 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3375 100 400 36 Bearing: Plain 150x110 105x80 10 160 90
2-3376 100 400 36 Bearing: Ball 150x110 105x80 10 160 90
2-3377 125 600 42 Bearing: Plain 150x110 105x80 10 183 106
2-3378 125 600 42 Bearing: Ball 150x110 105x80 10 183 106
2-3379 150 900 45 Bearing: Plain 150x110 105x80 10 200 121
2-3380 150 900 45 Bearing: Ball 150x110 105x80 10 200 121
2-3381 200 1000 50 Bearing: Plain 150x110 105x80 10 249 155
2-3382 200 1000 50 Bearing: Ball 150x110 105x80 10 249 155
2-3383 250 1100 57 Bearing: Plain 150x110 105x80 10 315 197
2-3384 250 1100 57 Bearing: Ball 150x110 105x80 10 315 197
2-3385 250 1200 57 Bearing: Plain 180x170 150x135 16 315 197
2-3386 250 1300 57 Bearing: Ball 180x170 150x135 16 315 197
