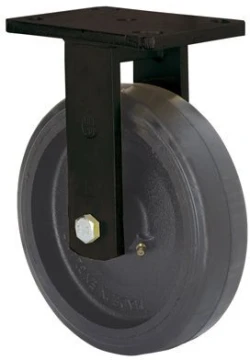

SERIE HLB-HG

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 850 Kg.

It is used in: logistics transport tools, mobile platforms, equipments, cranes transporting heavy materials, elevating platforms, internal logistics and transport carts.

Mainly used in the aeronautic sector, railway and automobile factories.

HG: Castor suitable for mechanical traction. High protection of floors. Smooth and noiseless tread (elevating driving carts, trailers...). Industry in general.

See comparative

HLB SERIES-HG

Code
2-0453	100	200	38	150x110	105x80	10	160	90
2-0454	125	250	38	150x110	105x80	10	183	106
2-1951	150	400	50	150x110	105x80	10	200	121
2-1952	200	600	50	150x110	105x80	10	249	155
2-2289	250	700	50	150x110	105x80	10	315	197
2-1953	250	700	50	180x170	150x135	16	315	197
2-3563	250	750	75	180x170	150x135	16	315	197
2-0983	300	750	50	180x170	150x135	16	360	230
2-3564	300	850	75	180x170	150x135	16	360	230

HLB SERIES-HG

Code
2-0458	100	200	38	150x110	105x80	10	160	--
2-0459	125	250	38	150x110	105x80	10	183	--
2-1956	150	400	50	150x110	105x80	10	200	--
2-1957	200	600	50	150x110	105x80	10	249	--
2-2291	250	700	50	150x110	105x80	10	315	--
2-1958	250	700	50	180x170	150x135	16	315	--
2-3565	250	750	75	180x170	150x135	16	315	--
2-0984	300	750	50	180x170	150x135	16	360	--
2-3566	300	850	75	180x170	150x135	16	360	--

HLB SERIES-HG

Code
2-1959	150	400	50	150x110	105x80	10	200	121
2-1960	200	600	50	150x110	105x80	10	249	155
2-2293	250	700	50	150x110	105x80	10	315	197
2-1961	250	700	50	180x170	150x135	16	315	197
2-3567	250	750	75	180x170	150x135	16	315	197
2-1518	300	750	50	180x170	150x135	16	360	230
2-3568	300	850	75	180x170	150x135	16	360	230

HLB SERIES-HG

Code
2-3354	100	200	38	150x110	105x80	10	160	90
2-3355	125	250	38	150x110	105x80	10	183	106
2-3356	150	400	50	150x110	105x80	10	200	121
2-3357	200	600	50	150x110	105x80	10	249	155
2-3358	250	700	50	150x110	105x80	10	315	197
2-3359	250	700	50	180x170	150x135	16	315	197
2-3744	250	750	75	180x170	150x135	16	315	197
2-3360	300	750	50	180x170	150x135	16	360	230
2-3745	300	850	75	180x170	150x135	16	360	230

Other castors SERIE HLB

SERIE HLB-DE

125-250 mm

250-500 kg

SERIE HLB-PO

125-200 mm

300-600 kg

SERIE HLB-HU

100-300 mm

350-1.900 kg

SERIE HLB-HUAB

150-200 mm

600-800 kg

SERIE HLB-NF

100-200 mm

1.250-3.000 kg

SERIE HLB-FT

100-250 mm

400-1.300 kg

SERIE HLB-TA

100-250 mm

450-1.350 kg
