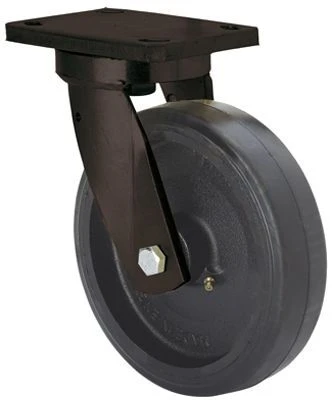

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 850 Kg.
It is used in: logistics transport tools, mobile platforms, equipments, cranes transporting heavy materials, elevating platforms, internal logistics and transport carts.
Mainly used in the aeronautic sector, railway and automobile factories.
HG: Castor suitable for mechanical traction. High protection of floors. Smooth and noiseless tread (elevating driving carts, trailers...). Industry in general.

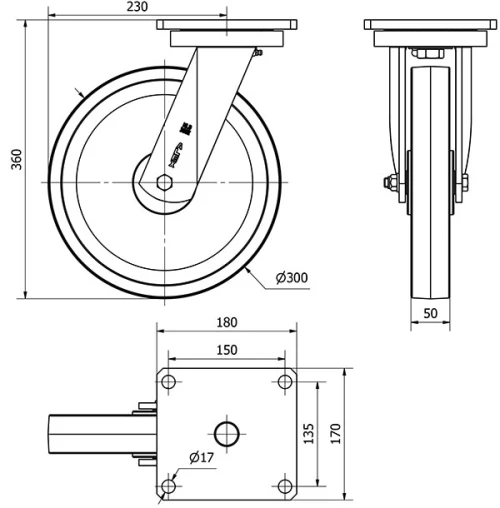

|Braking System||Without Brake|
|Width of tyre (mm)||50|
|Plate dimensions (mm)||180x170|
|Distance between holes (mm)||150x135|
|Plate hole diameter (mm)||16|
|Overall height (mm)||360|
|Unit Weight of the wheel (kg)||16|
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
Rolling Resistence Reasonable
Noise during the march Excelent
Floor Protection Excelent
