Which castors do you need?

SERIE HLB-TA

Categories

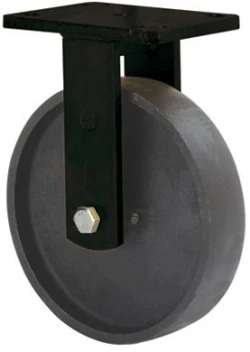

Steel castors, especially indicated to support high-loads up to 1.350 Kg.

It is used in: logistics transport tools, furnaces standing high temperatures (-40º to +300º) and heavy machinery for the construction sector.

Mainly used in the railway sector and automobile factories.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

See comparative

HLB SERIES-TA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0516 100 450 40 Bearing: Ball 150x110 105x80 10 160 90
2-0518 125 630 40 Bearing: Ball 150x110 105x80 10 183 106
2-0519 150 1175 45 Bearing: Plain 150x110 105x80 10 200 121
2-0520 150 1175 45 Bearing: Ball 150x110 105x80 10 200 121
2-0521 200 1250 45 Bearing: Plain 150x110 105x80 10 249 155
2-0522 200 1250 45 Bearing: Ball 150x110 105x80 10 249 155
2-2303 250 1250 50 Bearing: Ball 150x110 105x80 10 315 197
2-0523 250 1350 50 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-TA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0525 100 450 40 Bearing: Ball 150x110 105x80 10 160 --
2-0527 125 630 40 Bearing: Ball 150x110 105x80 10 183 --
2-0528 150 1175 45 Bearing: Plain 150x110 105x80 10 200 --
2-0529 150 1175 45 Bearing: Ball 150x110 105x80 10 200 --
2-0530 200 1250 45 Bearing: Plain 150x110 105x80 10 249 --
2-0531 200 1250 45 Bearing: Ball 150x110 105x80 10 249 --
2-2304 250 1250 50 Bearing: Ball 150x110 105x80 10 315 --
2-0532 250 1350 50 Bearing: Ball 180x170 150x135 16 315 --

HLB SERIES-TA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1540 150 1175 45 Bearing: Plain 150x110 105x80 10 200 121
2-1541 150 1175 45 Bearing: Ball 150x110 105x80 10 200 121
2-1542 200 1250 45 Bearing: Plain 150x110 105x80 10 249 155
2-1543 200 1250 45 Bearing: Ball 150x110 105x80 10 249 155
2-2305 250 1250 50 Bearing: Ball 150x110 105x80 10 315 197
2-1544 250 1350 50 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-TA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3387 100 450 40 Bearing: Ball 150x110 105x80 10 160 90
2-3388 125 630 40 Bearing: Ball 150x110 105x80 10 183 106
2-3389 150 1175 45 Bearing: Plain 150x110 105x80 10 200 121
2-3390 150 1175 45 Bearing: Ball 150x110 105x80 10 200 121
2-3391 200 1250 45 Bearing: Plain 150x110 105x80 10 249 155
2-3392 200 1250 45 Bearing: Ball 150x110 105x80 10 249 155
2-3393 250 1250 50 Bearing: Ball 150x110 105x80 10 315 197
2-3394 250 1350 50 Bearing: Ball 180x170 150x135 16 315 197
