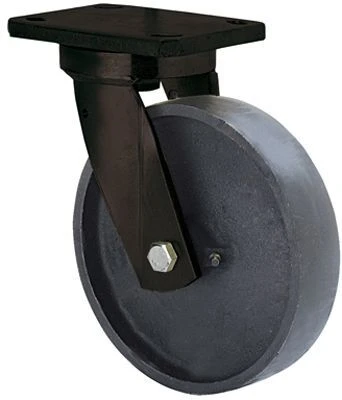

HLB SERIES-TA 2-0516
EAN 8422202205168
Steel castors, especially indicated to support high-loads up to 1.350 Kg.
It is used in: logistics transport tools, furnaces standing high temperatures (-40º to +300º) and heavy machinery for the construction sector.
Mainly used in the railway sector and automobile factories.
TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.
For temperatures above 200ºC, load (Kg) should be reduced by 40%.

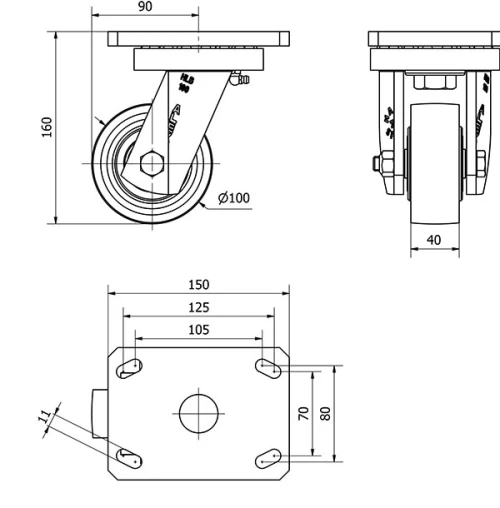

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Cast Iron |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 90 |
Overall height (mm) | 160 |
Load | 450 |
Unit Weight of the wheel (kg) | 4.725 |
Volume (cm3) | 2904 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castor made of welded steel up to 8 mm.Painted black.Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts.Grease nipples on the swivel head and the wheel.Manufactured to European standards EN 12532/12533.
-
Rolling Resistence Excelent
-
Noise during the march Sufficient
-
Floor Protection Sufficient
