SERIE HLB-DE

Categories

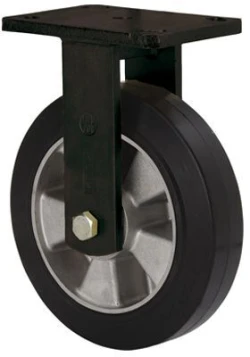

Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A. Especially indicated to support high-loads up to 500 Kg.

It is used in: carbody factories, internal logistics, transport tools, elevating platforms, transport carts, logistics for military missions material, heavy machinery, mobile platforms, sport centres, sweeping machines and polishing machines.

DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection for floors and equipment. Ideal for uneven surfaces.

See comparative

HLB SERIES-DE

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1453 125 250 40 Bearing: Ball 150x110 105x80 10 183 106
2-0449 160 350 50 Bearing: Ball 150x110 105x80 10 205 121
2-0450 200 450 50 Bearing: Ball 150x110 105x80 10 249 155
2-2285 250 500 50 Bearing: Ball 150x110 105x80 10 315 197
4-1049 250 500 50 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-DE

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1442 125 250 40 Bearing: Ball 150x110 105x80 10 183 --
2-0451 160 350 50 Bearing: Ball 150x110 105x80 10 205 --
2-0452 200 450 50 Bearing: Ball 150x110 105x80 10 249 --
2-2286 250 500 50 Bearing: Ball 150x110 105x80 10 315 --
4-1058 250 500 50 Bearing: Ball 180x170 150x135 16 315 --

HLB SERIES-DE

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1524 160 350 50 Bearing: Ball 150x110 105x80 10 205 126
2-1525 200 450 50 Bearing: Ball 150x110 105x80 10 249 155
2-2287 250 500 50 Bearing: Ball 150x110 105x80 10 315 197
2-1526 250 500 50 Bearing: Ball 180x170 150x135 16 315 197

HLB SERIES-DE

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3349 125 250 40 Bearing: Ball 150x110 105x80 10 183 106
2-3350 160 350 50 Bearing: Ball 150x110 105x80 10 205 121
2-3351 200 450 50 Bearing: Ball 150x110 105x80 10 249 155
2-3352 250 500 50 Bearing: Ball 150x110 105x80 10 315 197
2-3353 250 500 50 Bearing: Ball 180x170 150x135 16 315 197

Other castors SERIE HLB

SERIE HLB-HG
SERIE HLB-HG
Diametro 100-300 mm
Carga 200-850 kg
SERIE HLB-PO
SERIE HLB-PO
Diametro 125-200 mm
Carga 300-600 kg
SERIE HLB-HU
SERIE HLB-HU
Diametro 100-300 mm
Carga 350-1.900 kg
SERIE HLB-HUAB
SERIE HLB-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE HLB-NF
SERIE HLB-NF
Ampliamos Gamma
Diametro 100-200 mm
Carga 1.250-3.000 kg
SERIE HLB-FT
SERIE HLB-FT
Diametro 100-250 mm
Carga 400-1.300 kg
SERIE HLB-TA
SERIE HLB-TA
Diametro 100-250 mm
Carga 450-1.350 kg
