HLB SERIES-DE 2-2285

Code: 2-2285

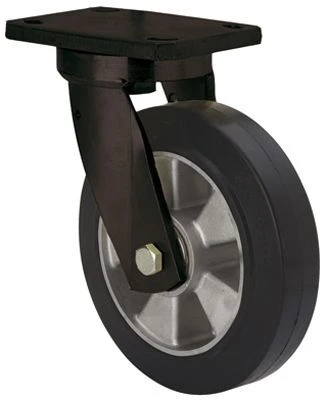

Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A. Especially indicated to support high-loads up to 500 Kg.

It is used in: carbody factories, internal logistics, transport tools, elevating platforms, transport carts, logistics for military missions material, heavy machinery, mobile platforms, sport centres, sweeping machines and polishing machines.

DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection for floors and equipment. Ideal for uneven surfaces.

Components

Brackets

Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

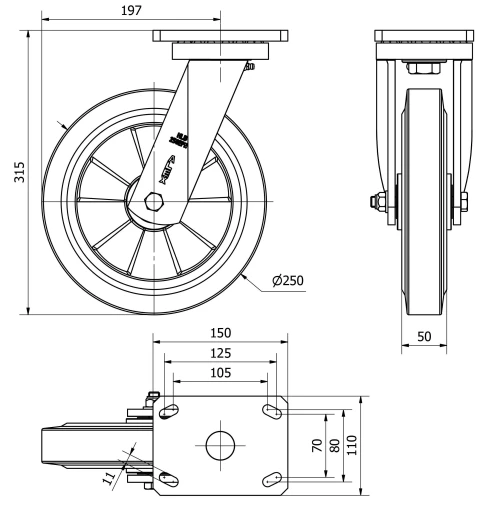

Technical Data 2-2285

EAN:

8422202222851

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

197

Overall height (mm):

315

Load:

500

Unit Weight of the wheel (kg):

6,48

Volume (cm³):

9425
