Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A. Especially indicated to support high-loads up to 500 Kg.
It is used in: carbody factories, internal logistics, transport tools, elevating platforms, transport carts, logistics for military missions material, heavy machinery, mobile platforms, sport centres, sweeping machines and polishing machines.
DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection for floors and equipment. Ideal for uneven surfaces.

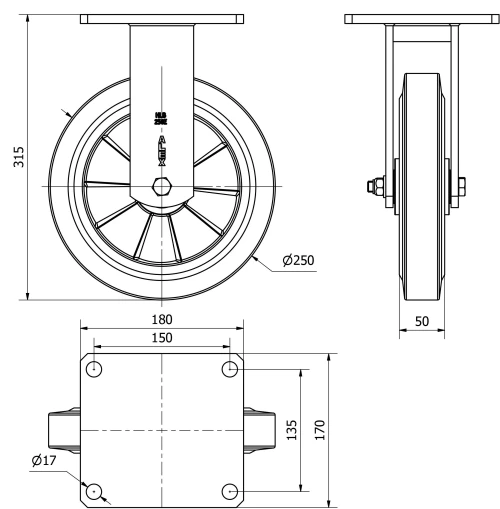

|Braking System||Without Brake|
|Hardness of tread||70º SHORE A|
|Width of tyre (mm)||50|
|Plate dimensions (mm)||180x170|
|Distance between holes (mm)||150x135|
|Plate hole diameter (mm)||16|
|Overall height (mm)||315|
|Unit Weight of the wheel (kg)||6.78|
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
Rolling Resistence Reasonable
Noise during the march Excelent
Floor Protection Excelent
