Which castors do you need?
HLB SERIES-DE 2-1453
EAN 8422202214535

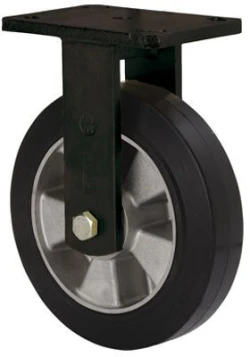

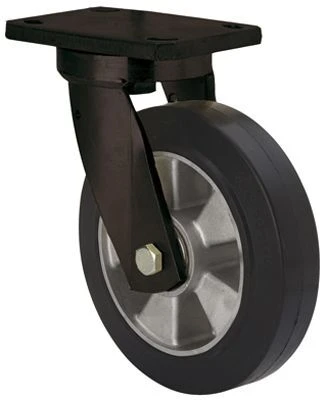

Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A. Especially indicated to support high-loads up to 500 Kg.
It is used in: carbody factories, internal logistics, transport tools, elevating platforms, transport carts, logistics for military missions material, heavy machinery, mobile platforms, sport centres, sweeping machines and polishing machines.
DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection for floors and equipment. Ideal for uneven surfaces.

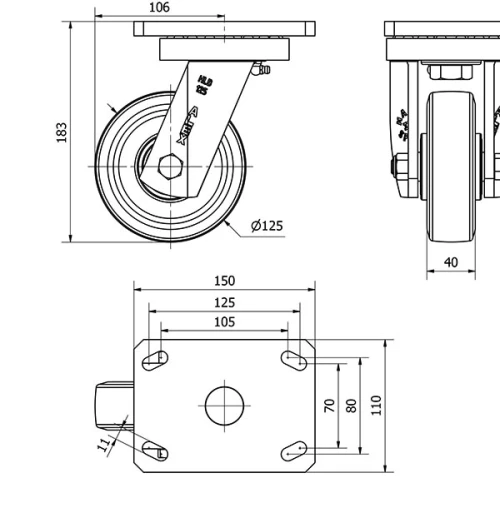

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Hardness of tread | 70º SHORE A |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 106 |
Overall height (mm) | 183 |
Load | 250 |
Unit Weight of the wheel (kg) | 3.718 |
Volume (cm3) | 3644 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
