HLB SERIES-HG 2-3354
EAN 8422202233543

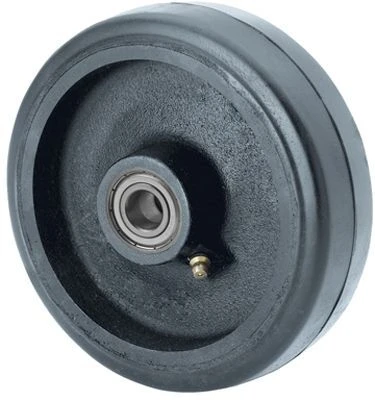

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 850 Kg.
It is used in: logistics transport tools, mobile platforms, equipments, cranes transporting heavy materials, elevating platforms, internal logistics and transport carts.
Mainly used in the aeronautic sector, railway and automobile factories.
HG: Castor suitable for mechanical traction. High protection of floors. Smooth and noiseless tread (elevating driving carts, trailers...). Industry in general.

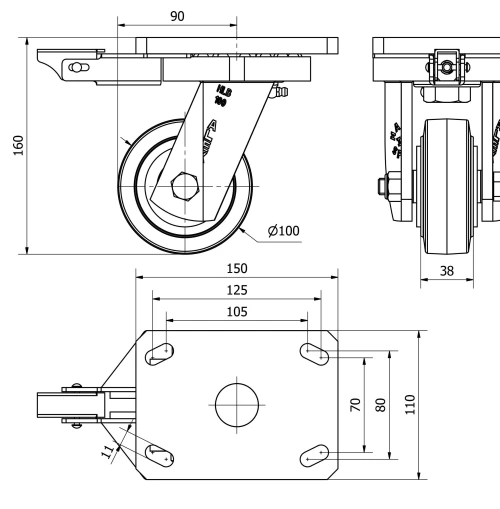

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 38 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 90 |
Overall height (mm) | 160 |
Load | 200 |
Unit Weight of the wheel (kg) | 4.557 |
Volume (cm3) | 2904 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
