Reinforced nylon castors, especially indicated to support high-loads up to 1.250 Kg.
It is used in: logistics transport tools, outdoor area, internal logistics, mobile platforms, elevating platforms, transport cars, logistics for military missions material, heavy machinery in the construction sector, mobile cranes and sport centres.
Mainly used in the aeronautic sector, railway and automobilie factories. Clean rooms.
FT: especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. Canning factories.

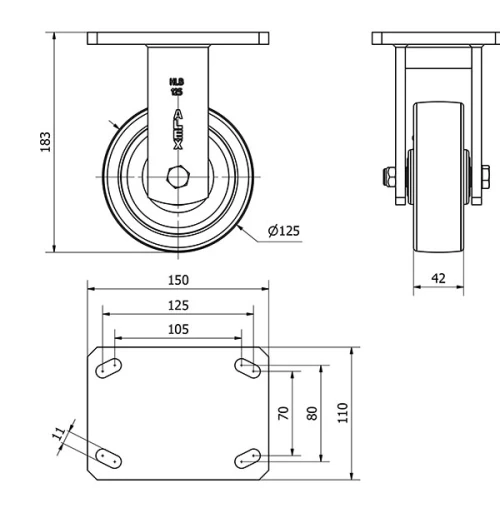

|Braking System||Without Brake|
|Width of tyre (mm)||42|
|Plate dimensions (mm)||150x110|
|Distance between holes (mm)||105x80|
|Plate hole diameter (mm)||10|
|Overall height (mm)||183|
|Unit Weight of the wheel (kg)||2.636|
Heavy fabricated castor made of welded steel up to 8 mm.Painted black.Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts.Grease nipples on the swivel head and the wheel.Manufactured to European standards EN 12532/12533.
Rolling Resistence Excelent
Noise during the march Reasonable
Floor Protection Reasonable
