HLB SERIES-PO 2-3361
EAN 8422202233611
Castors with white nylon centre and red polyurethane tyre with a hardness of 90-95º Shore A. Mechanical traction. Especially indicated to support high-loads up to 600 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, boilers, sweeping machines, metallurgical factories, chemical factories and public services.
Mainly used in the aeronautic sector, railway and automobile factories.
PO: elastic and noiseless functioning. High floor protection. Noiseless. Long useful life.

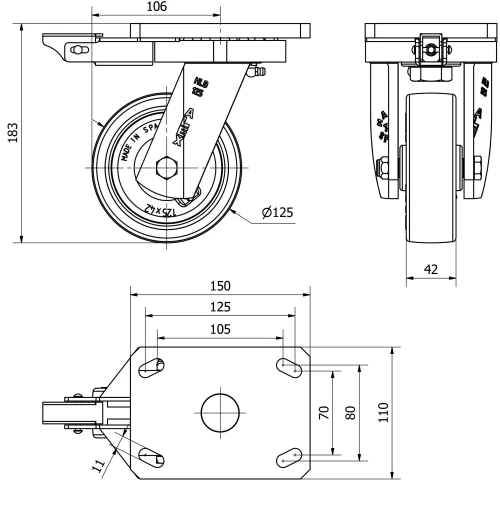

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Polyurethane |
Hardness of tread | 90-95º SHORE A |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 42 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 106 |
Overall height (mm) | 183 |
Load | 300 |
Unit Weight of the wheel (kg) | 4.055 |
Volume (cm3) | 3644 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
