NF SERIES-HLB 2-4418

Code: 2-4418

Extra heavy duty castors made of reinforced cast nylon very resistant to aggressive substances,chemicals and wear and abrasion. Especially designed to support loads up to 2,750 kg.

Highly recommended for car body factories, internal logistics, transport equipment, heavy machinery, portable cranes, sport halls, sweepers, polishers.

NF: Heavy duty load capacity wheel. High impact and shock-resistance. Extra-heavy. Little friction with the ground.

To prevent overheating, short working periods are recommended.

Components

Brackets

Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.

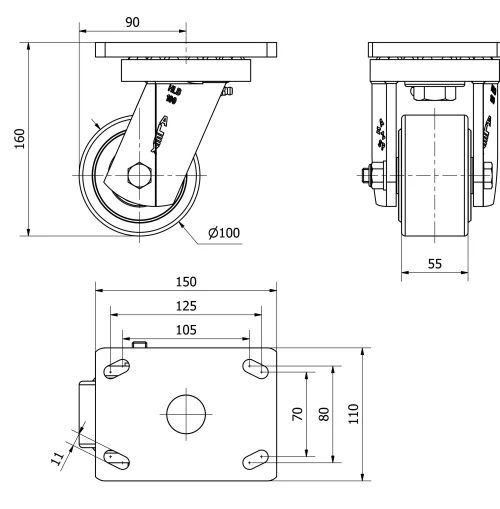

Technical Data 2-4418

EAN:

8422202244181

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Low Temperature (ºC):

-30

Maximum Temperature (ºC):

Hardness of tread:

80º SHORE A

Bearing:

Ball

Color:

White

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

160

Load:

1250

Unit Weight of the wheel (kg):

4,167

Volume (cm³):

2904
