ZVI SERIES-PGA 2-1184
EAN 8422202211848
Black rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 135 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.
Suitable for mechanical engineering projects by draftsmen and project executors.
PGA: smooth and noiseless castor. Does not leave marks on floor.

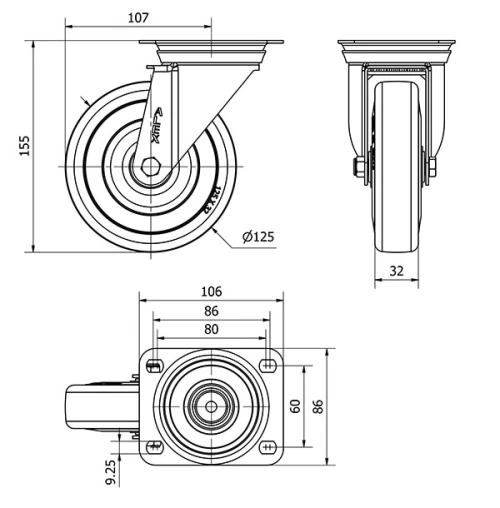

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 106x86 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 107 |
Overall height (mm) | 155 |
Load | 135 |
Unit Weight of the wheel (kg) | 0.885 |
Volume (cm3) | 2133 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
