ZVI SERIES-POA 2-3488

Code: 2-3488

Soft blue injected polyurethane castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 250 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, bakery machines, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

POA: silent running and vibrations absoprtion, clean and elastic. Great wear resistance. High chemical resistance to oils..

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

Blue soft polyurethane tyre on white polypropylene centre. 80º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

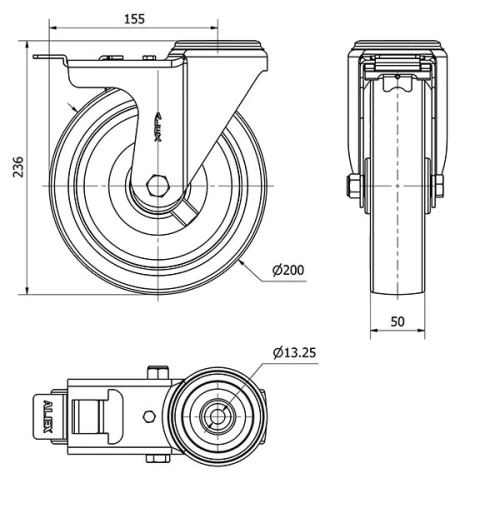

Technical Data 2-3488

EAN:

8422202234885

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Hardness of tread:

80º SHORE A

Bearing:

Stainless Steel Roller Bearing

Diameter (mm):

200

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

153

Overall height (mm):

236

Load:

250

Unit Weight of the wheel (kg):

2,45

Volume (cm³):

4671

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3486
