ZVI SERIES-TD 2-1833

Code: 2-1833

Reinforced resine castors with stainless steel (AISI 304) components. Especially indicated to stand high temperatures and high-loads up to 600 Kg.

It is used in: furnaces and light machinery. Mainly used in the industrial sector, aeronautic sector and automobile factories, food industry, kitchens, vending machines, freezing chambers and stainless steel constructions.

Suitable for mechanical engineering projects by draftsmen and project executors.

TD: reinforced resine castor. Indicated to the industrial sectors.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

Resin wheel up to 200ºC when not in continuous use

Temperature range: -40º ÷ +200º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

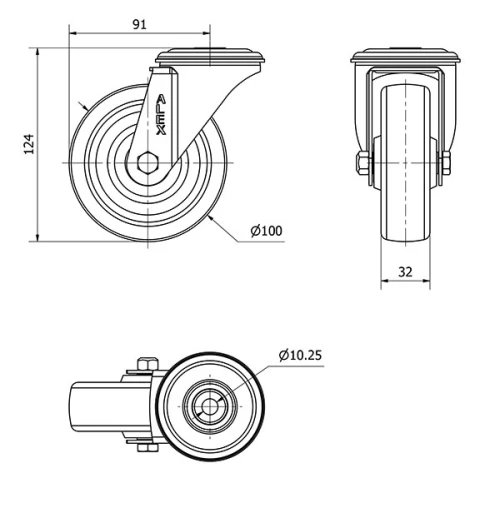

Technical Data 2-1833

EAN:

8422202218335

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Phenolic Resin Wheel

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

127

Load:

225

Unit Weight of the wheel (kg):

0,645

Volume (cm³):

1111
