ZVI SERIES-TD 2-4010
EAN 8422202240107
Reinforced resine castors with stainless steel (AISI 304) components. Especially indicated to stand high temperatures and high-loads up to 600 Kg.
It is used in: furnaces and light machinery. Mainly used in the industrial sector, aeronautic sector and automobile factories, food industry, kitchens, vending machines, freezing chambers and stainless steel constructions.
Suitable for mechanical engineering projects by draftsmen and project executors.
TD: reinforced resine castor. Indicated to the industrial sectors.

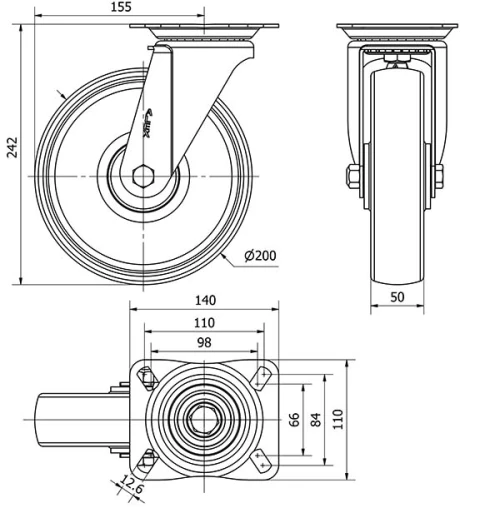

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Phenolic Resin Wheel |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 153 |
Overall height (mm) | 242 |
Load | 600 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
