ZVI SERIES-TT 2-4179

Code: 2-4179

Reinforced resine castors with stainless steel (AISI 304) components. Especially indicated to stand high temperatures and high-loads up to 125 Kg.

It is used in: furnaces and light machinery. Mainly used in the industrial sector, aeronautic sector and automobile factories, food industry, vending machines, bakery machines, light machinery, containers and stainless steel constructions.

Suitable for mechanical engineering projects by draftsmen and project executors.

TD: resine castor. Indicated to the industrial sectors.

Can withstands up to 280ºC in 30 minutes intervals.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

Resin wheel up to 280ºC when not in continuous use

Temperature range: -30º ÷ +280º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

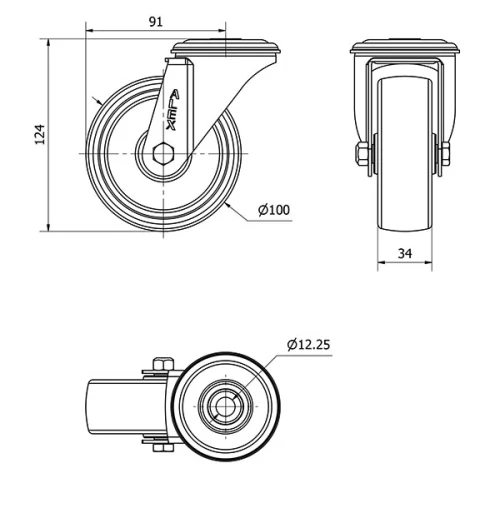

Technical Data 2-4179

EAN:

8422202241791

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Phenolic Resin Wheel

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

124

Load:

125
