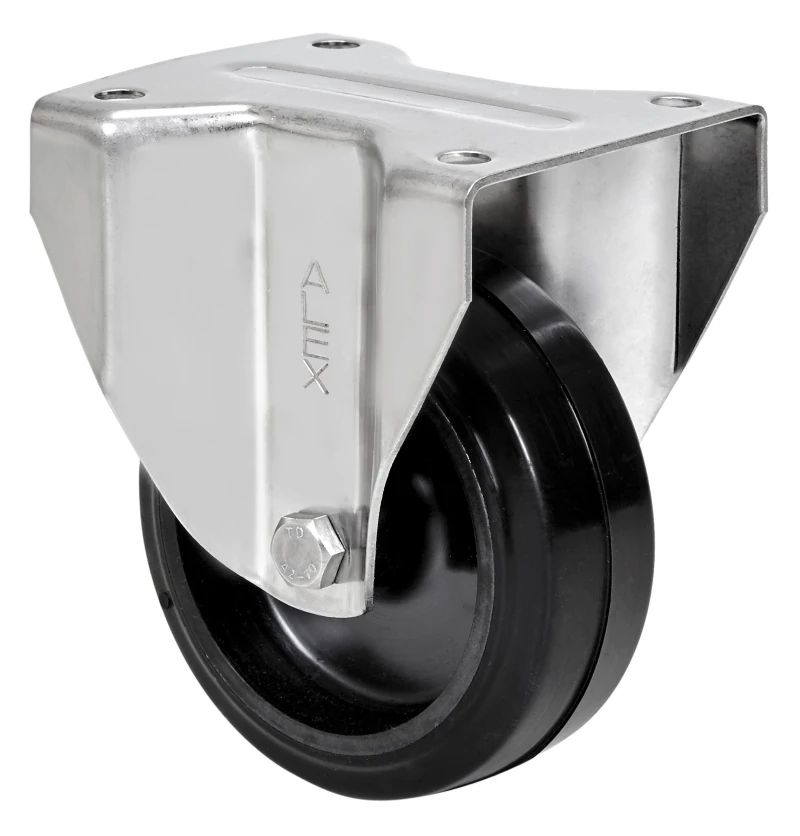

ZVI INOX SERIES-THG 2-4441

Code: 2-4441

Heat-resistant castors with black rubber tyre up to 250ºC in 30 minutes intervals. Especially designed to support loads up to 100kg. All its parts made of stainless steel (AISI 304).

Used in ovens and light machinery. Aeronautic and food industries and car factories, vending machines, bakeries equipment, light machinery, stainless steel constructions.

Suitable for mechanical engineering projects by draftsmen and project executors.

THG:perfect for medium duty loads' manual movement. Noiseless. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

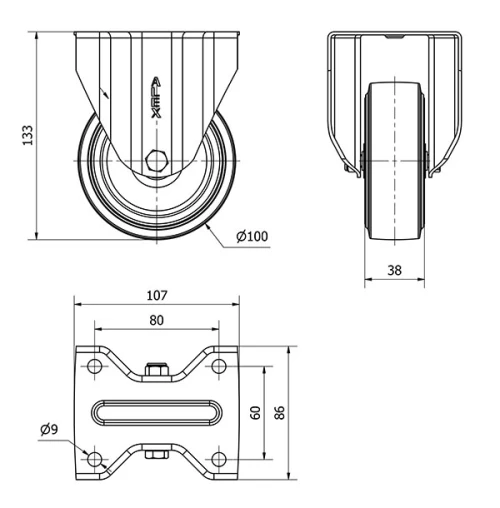

Technical Data 2-4441

EAN:

8422202244419

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-30

Maximum Temperature (ºC):

250

Hardness of tread:

80º SHORE A

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

133

Load:

100

Unit Weight of the wheel (kg):

0,597

Volume (cm³):

1233

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
