Which castors do you need?
2-3980
EAN 8422202239804
Castors with aluminum centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 700 Kg. It is used in: logistics transport tools, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, engineering projects, draftsmen and mechanical engineering projects. Mainly used in the aeronautic sector, railway, automobile factories, food industy, repair shops and industrial activities.
AUAB: Easy to use. Ball-shaped. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.
Low turning resistance and easier rolling.

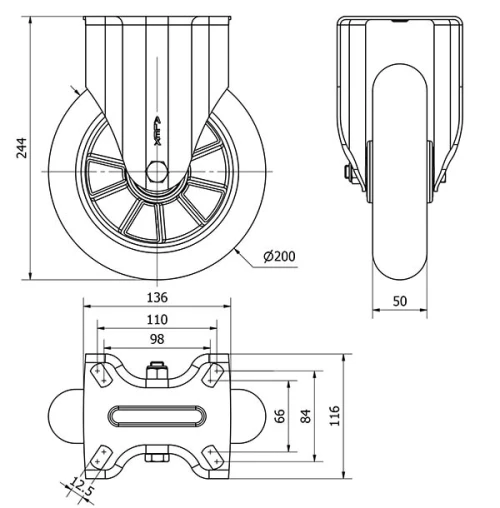

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 136x116 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 244 |
Load | 700 |
Unit Weight of the wheel (kg) | 2.96 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
-
Rolling Resistence Excelent
-
Noise during the march Good
-
Floor Protection Good
