ZVR SERIES-HUAB 2-3863

Code: 2-3863

Wheels with a steel core and a polyurethane tread with a hardness of 95˚ Shore A, featuring a balloon-shaped tread, especially designed to support high loads of up to 700 kg

They are used in logistic transport equipment, containers, industrial transport, tool carts, mobile stands, tool trolleys, food factories, mission logistics factories, sweepers, polishers, heavy machinery, mobile cranes, lifting tables, boiler shops, containers, designers, draftsmen, and mechanical engineering. Mainly applied in the aerospace, railway, automotive, food, workshop, and industrial sectors.

HUAB: easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough flooring surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel

Reduced effort in turning and moving.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

Wheel

Polyurethane tyre on cast iron centre

Temperature range: -20º ÷ +60º

Rolling Resistence Excelent

Noise during the march Good

Floor Protection Good

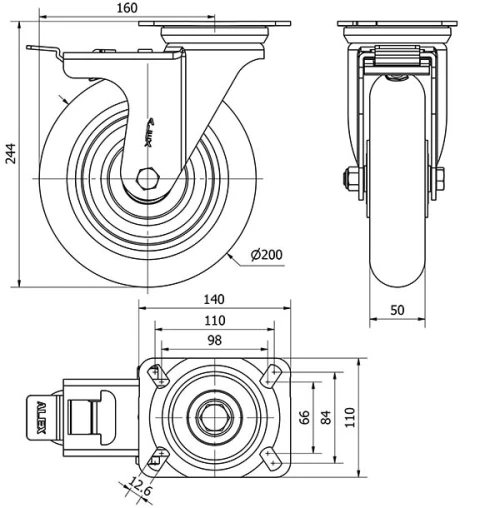

Technical Data 2-3863

EAN:

8422202238630

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

160

Overall height (mm):

244

Load:

700

Unit Weight of the wheel (kg):

5,93

Volume (cm³):

5985,32
