ZVR SERIES-FT 2-3888
EAN 8422202238883
Reinforced nylon castors, especially indicated to support high-loads up to 700 Kg.
It is used in: internal logistics tools, repair shops, tool trolleys, mobile platforms, transport tools, elevating platforms, food industry, transport carts, logistics for military missions material.
Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
FT: castors especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

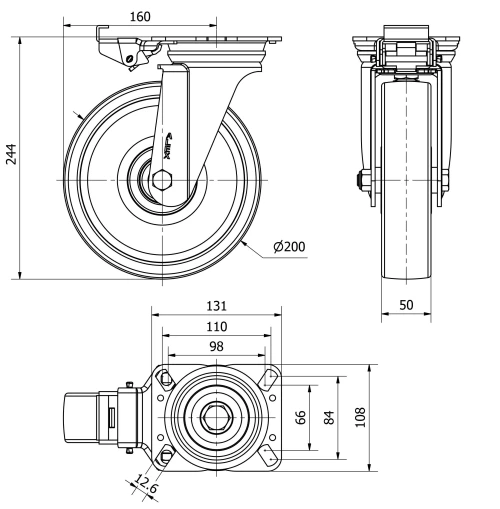

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Nylon(Polyamide 6) |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 160 |
Overall height (mm) | 244 |
Load | 700 |
Unit Weight of the wheel (kg) | 3.16 |
Volume (cm3) | 5761.86 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
