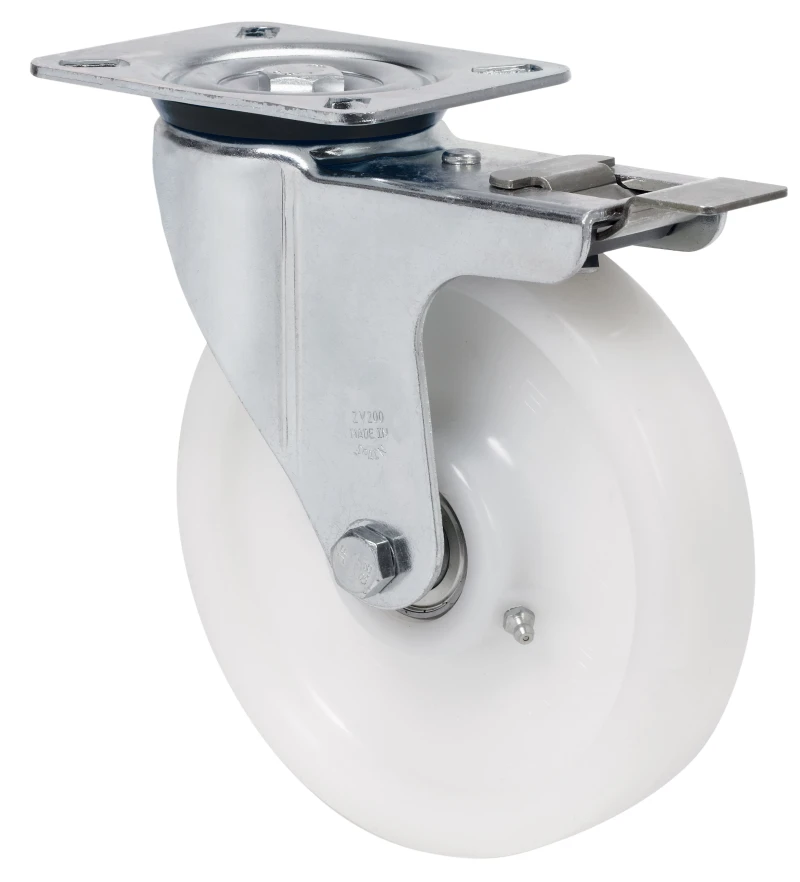

ZVR SERIES-FT 2-0091

Code: 2-0091

Reinforced nylon castors, especially indicated to support high-loads up to 700 Kg.

It is used in: internal logistics tools, repair shops, tool trolleys, mobile platforms, transport tools, elevating platforms, food industry, transport carts, logistics for military missions material.

Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

FT: castors especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

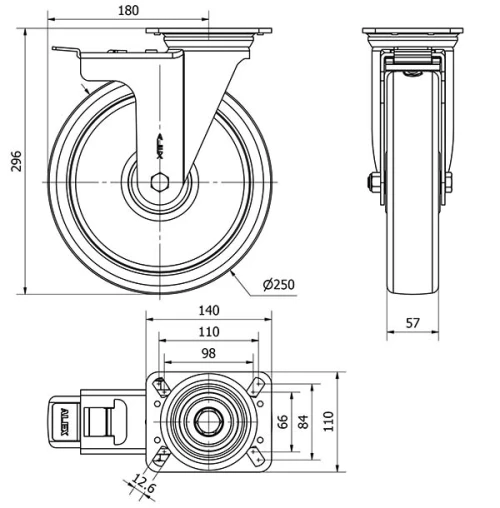

Technical Data 2-0091

EAN:

8422202200910

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Color:

White

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

185

Overall height (mm):

297

Load:

700

Volume (cm³):

8140
