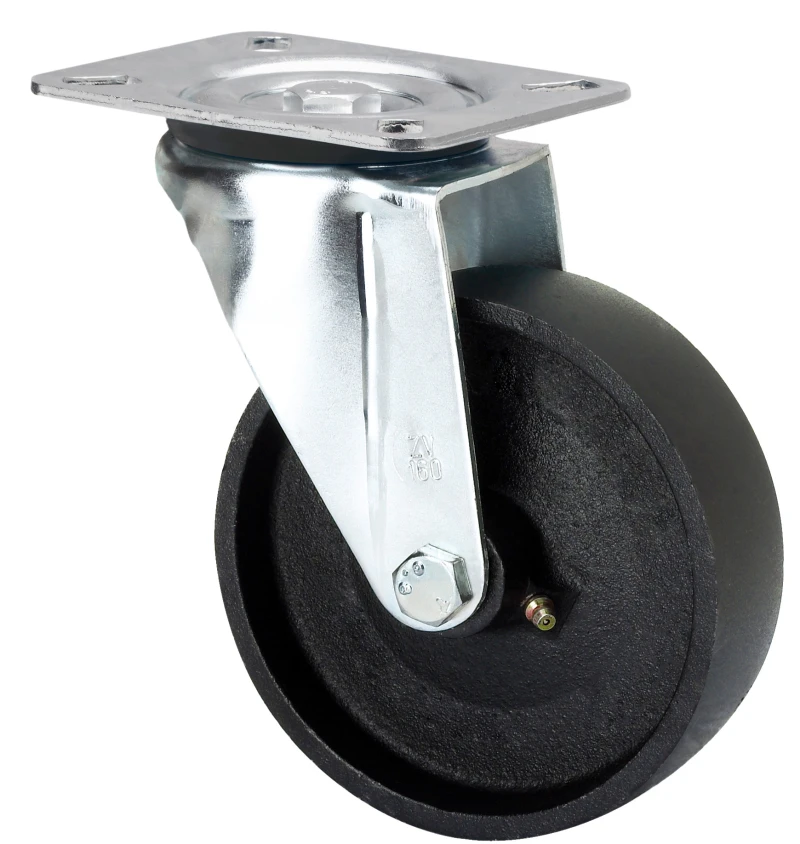

ZVR SERIES-TA 2-3897

Code: 2-3897

Cast iron castors, especially indicated to support high-loads up to 700 Kg.

It is used in: logistics transport tools, containers, industrial tansport, tool trolleys, food industry, logistics for military missions material, heavy machinery, mobile cranes, boilers, project executors, drafstsmen, mechanical engineering and repair shops.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: tough work conditions where the existence of cutting objects, chemical products or high temperatures could destroy other kind of castors. High load capacity.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

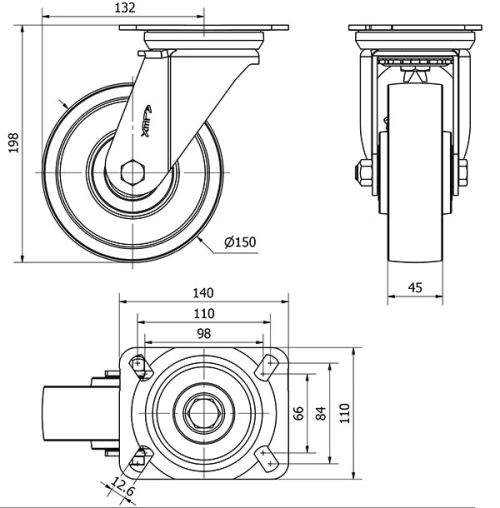

Technical Data 2-3897

EAN:

8422202238975

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

132

Overall height (mm):

198

Load:

650

Unit Weight of the wheel (kg):

5,12

Volume (cm³):

4312,44
