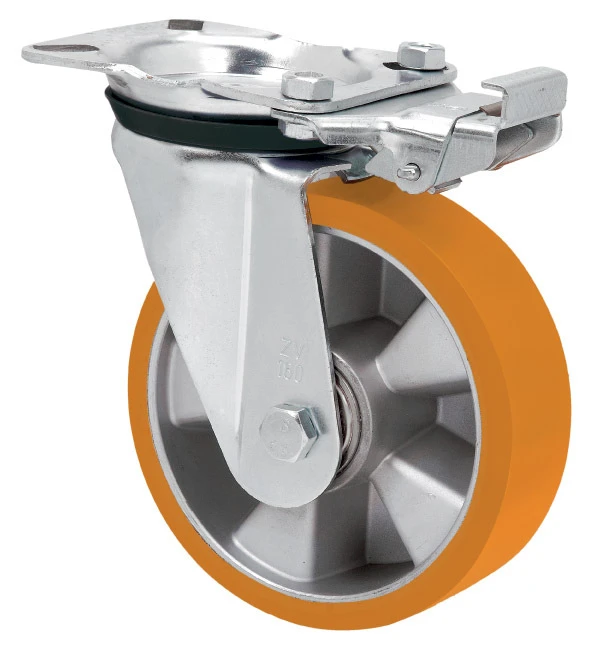

ZVR SERIES-AUB 2-3856

Code: 2-3856

Castors with aluminium centre and cast poluyrethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 700 Kg.

It is used in: logistics transport, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUB: Polyurethane for heavy duty works. Absorption to impacts.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

Wheel

Polyurethane tyre on aluminium die-cast centre. 95º shore A

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

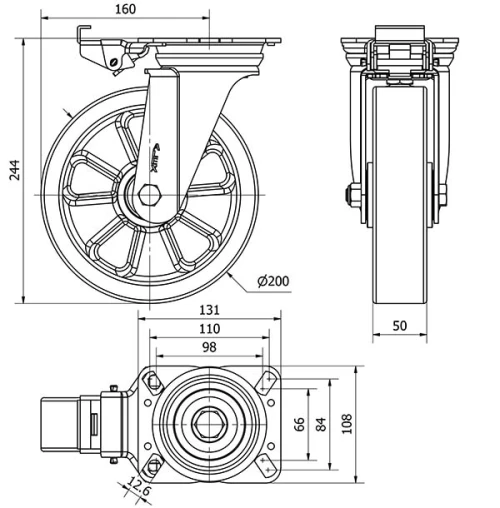

Technical Data 2-3856

EAN:

8422202238562

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

160

Overall height (mm):

244

Load:

700

Unit Weight of the wheel (kg):

3,6

Volume (cm³):

5761,86
