HU SERIES-HLB 2-3371

Code: 2-3371

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 1.900 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery in the construction sector and mobile cranes.

Mainly used in the aeronautic sector, railway and automobile factories.

HU: high absorption to impacts. Unfavourable flooring surface conditions. Rough surfaces, broken, with metallic shavings, oil strains, glasses, grease and gravel.

Components

Brackets

Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

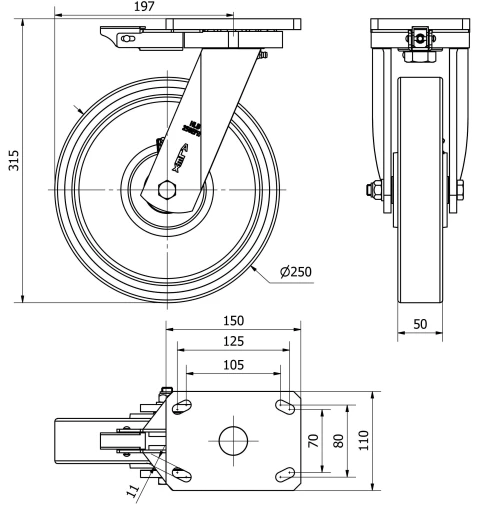

Technical Data 2-3371

EAN:

8422202233710

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

197

Overall height (mm):

315

Load:

1100

Unit Weight of the wheel (kg):

10,75

Volume (cm³):

9425
