Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 1.900 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery in the construction sector and mobile cranes.
Mainly used in the aeronautic sector, railway and automobile factories.
HU: high absorption to impacts. Unfavourable flooring surface conditions. Rough surfaces, broken, with metallic shavings, oil strains, glasses, grease and gravel.

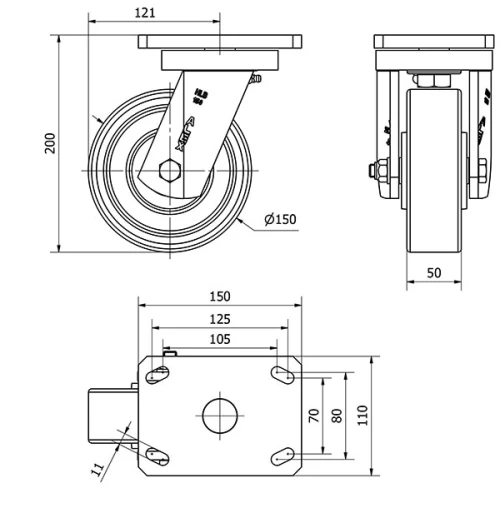

|Braking System||Without Brake|
|Hardness of tread||95º SHORE A|
|Width of tyre (mm)||50|
|Plate dimensions (mm)||150x110|
|Distance between holes (mm)||105x80|
|Plate hole diameter (mm)||10|
|Overall height (mm)||200|
|Unit Weight of the wheel (kg)||6.38|
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
Rolling Resistence Very Good
Noise during the march Good
Floor Protection Very Good
