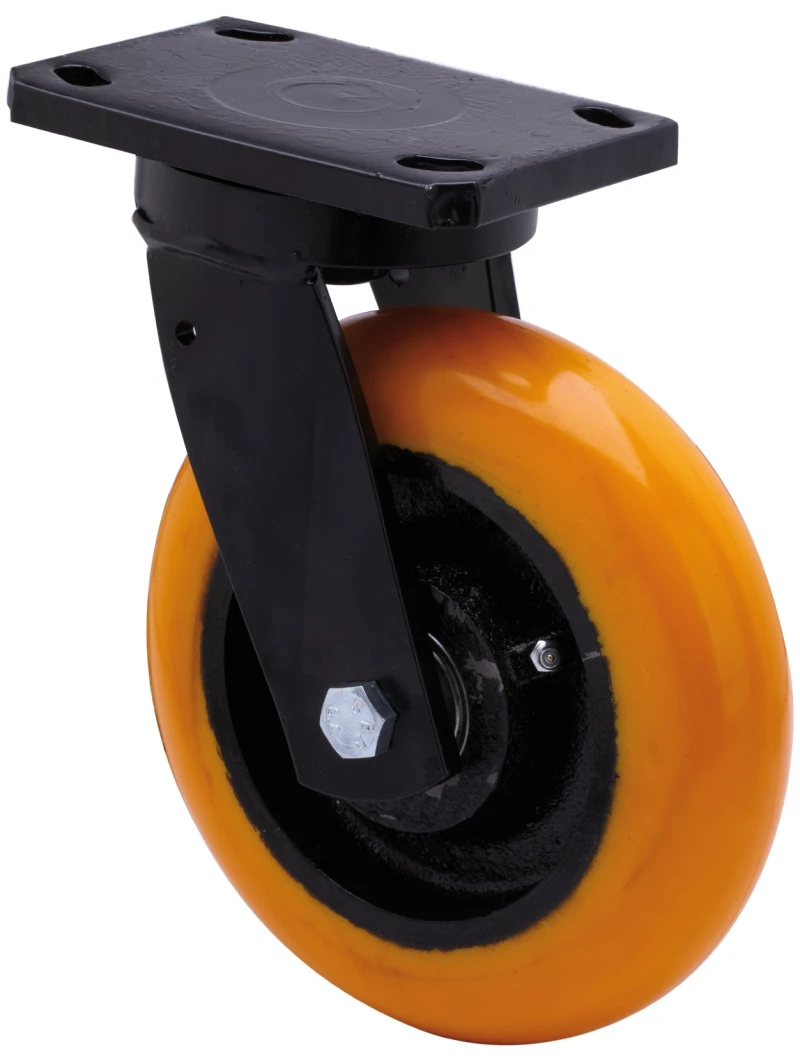

HUAB SERIES-HLB 2-3535

Code: 2-3535

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 800 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, movile platforms, elevating platforms, tranport carts, logistics for military missions material, heavy machinery in the construction sector, mobile cranes and sport centres.

Mainly used in the aeronautic sector, railway and automobile factories.

HUAB: Easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken glass, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.

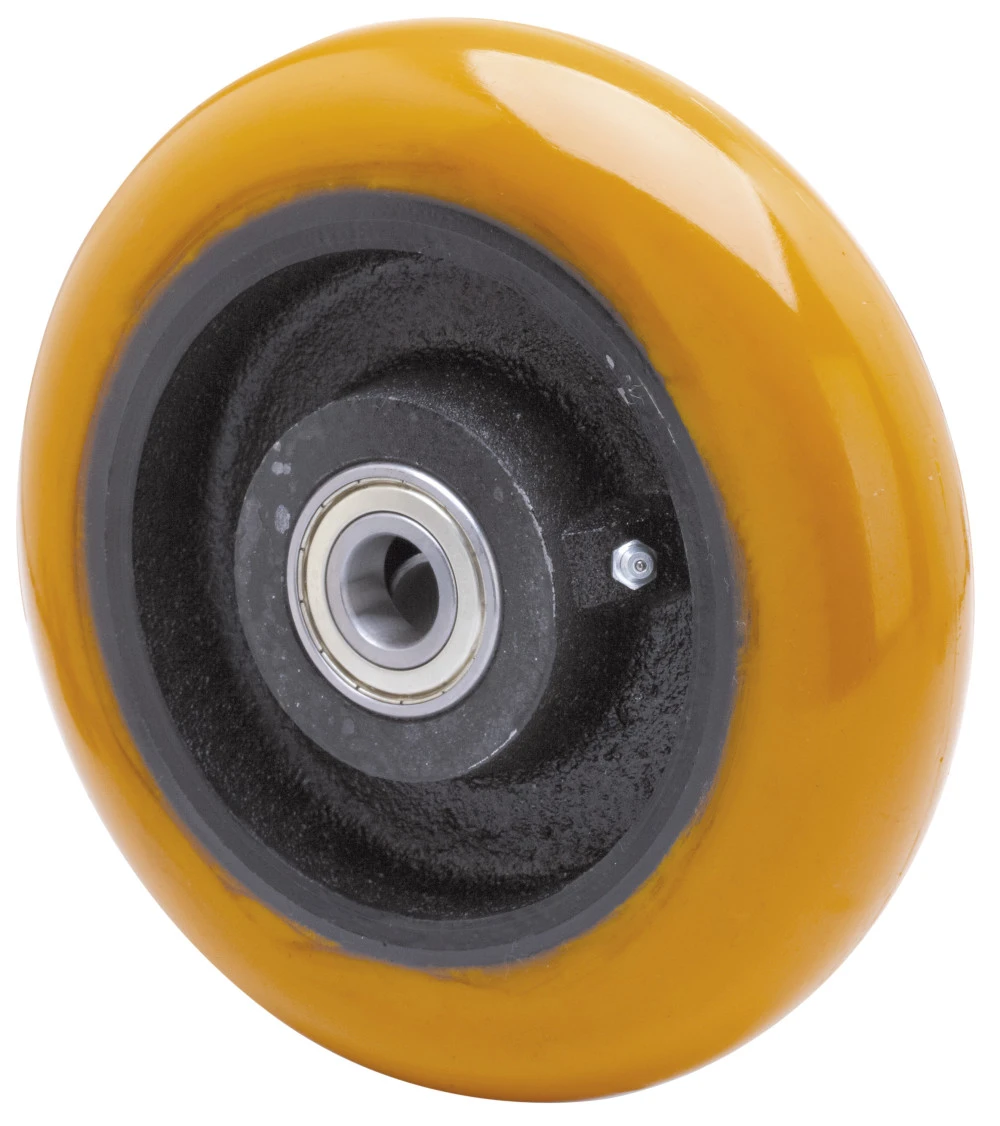

Wheel

Polyurethane tyre on cast iron centre

Temperature range: -20º ÷ +60º

Rolling Resistence Excelent

Noise during the march Good

Floor Protection Good

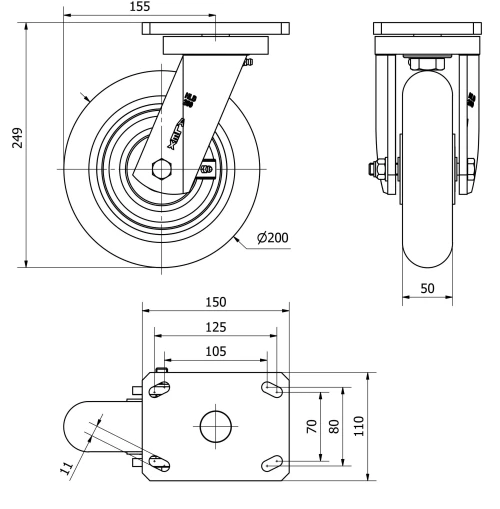

Technical Data 2-3535

EAN:

8422202235356

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

155

Overall height (mm):

249

Load:

800

Unit Weight of the wheel (kg):

7,95

Volume (cm³):

6300
