HUAB SERIES-HLB 2-3541
EAN 8422202235417

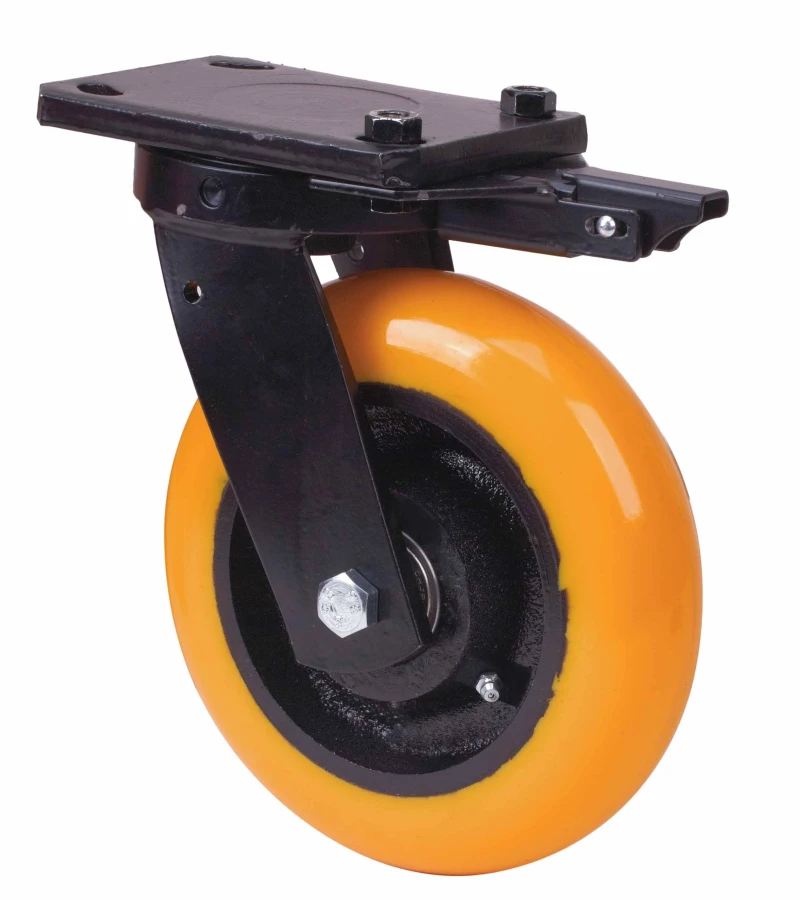

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 800 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, movile platforms, elevating platforms, tranport carts, logistics for military missions material, heavy machinery in the construction sector, mobile cranes and sport centres.
Mainly used in the aeronautic sector, railway and automobile factories.
HUAB: Easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken glass, with metallic shavings, oil stains, broken glass, grease and gravel.

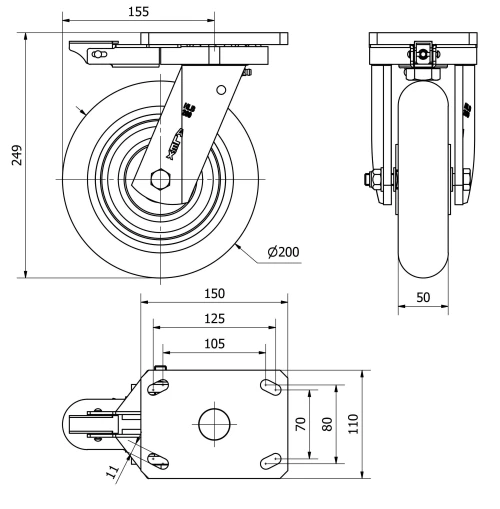

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 155 |
Overall height (mm) | 249 |
Load | 800 |
Unit Weight of the wheel (kg) | 7.35 |
Volume (cm3) | 6300 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castor made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Grease nipples on the swivel head and the wheel. Manufactured to European standards EN 12532/12533.
-
Rolling Resistence Excelent
-
Noise during the march Good
-
Floor Protection Good
